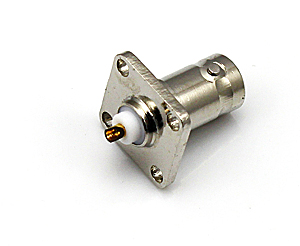

BNC female solder with flange
  • Clicks:979
  • Product class: PRODUCTS Connectors BNC connectors
  • Product describe:TECHNICAL CHARACTERISTICS Temp.range: -65～+165°C (PE Cable -40～+85°C) Vibration: MIL-STD-202, Method 213 Impedance: 50Ω, 75Ω Frequency Range: DC～4GHz Working Voltage: 500V max Withstand Voltage: 1500V rms (Min at sea) Contact resistance: Center Contact: ≤ 1.5 mΩ Outer Contact: ≤ 1 mΩ Insulation resistance: ≥ 5000 MΩ VSWR: Straight ≤ 1.22 Right angle ≤ 1.30 Durability(mating): ≥500（cycles） MATERIAL & PLATING Shell: brass nickel plated Contact pin: brass gold or silver plated Socket: beryllium gold or silver plated Elastic contact: beryllium gold or silver plated Insulator: PTFE Crimp ferrule: copper alloy nickel plated O-ring sealing: 6146 silastic APPLICABLE STANDARD MIL-C-39012; CECC 22120; IEC 60169-8.
 [→] BNC female R/A solder for PCB
 [←] BNC male clamp for -3 cable

  • BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device.
    It joins rapidly, keeps in touch with the characteristic such as being
    reliable, apply to the radio equipment and so on.
