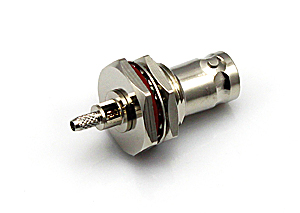

BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device.
It joins rapidly, keeps in touch with the characteristic such as being
reliable, apply to the radio equipment and so on.

TECHNICAL CHARACTERISTICS

Temp.range:            -65～+165°C (PE
Cable  -40～+85°C)

Vibration:                  MIL-STD-202,
Method 213

Impedance:                  50Ω, 75Ω

Frequency Range:            DC～4GHz

Working Voltage:             500V
max

Withstand Voltage:      1500V rms (Min at
sea)

Contact resistance:

Center Contact:            ≤ 1.5 mΩ

Outer Contact:             ≤ 1 mΩ

Insulation resistance:       ≥ 5000 MΩ

VSWR:     Straight
≤ 1.22

           Right
angle    ≤ 1.30

Durability(mating):       ≥500（cycles）

MATERIAL & PLATING

Shell:                brass            nickel plated

Contact pin:           brass          gold or silver plated

Socket:               beryllium       gold or silver plated

Elastic contact:        beryllium       gold or silver plated

Insulator:              PTFE

Crimp ferrule:      copper alloy     nickel
plated

O-ring sealing:       6146
silastic

APPLICABLE STANDARD

MIL-C-39012;

CECC 22120;

IEC 60169-8.
